Cobot MagBase 10 2.0 magnetische Montageplatte für Cobot

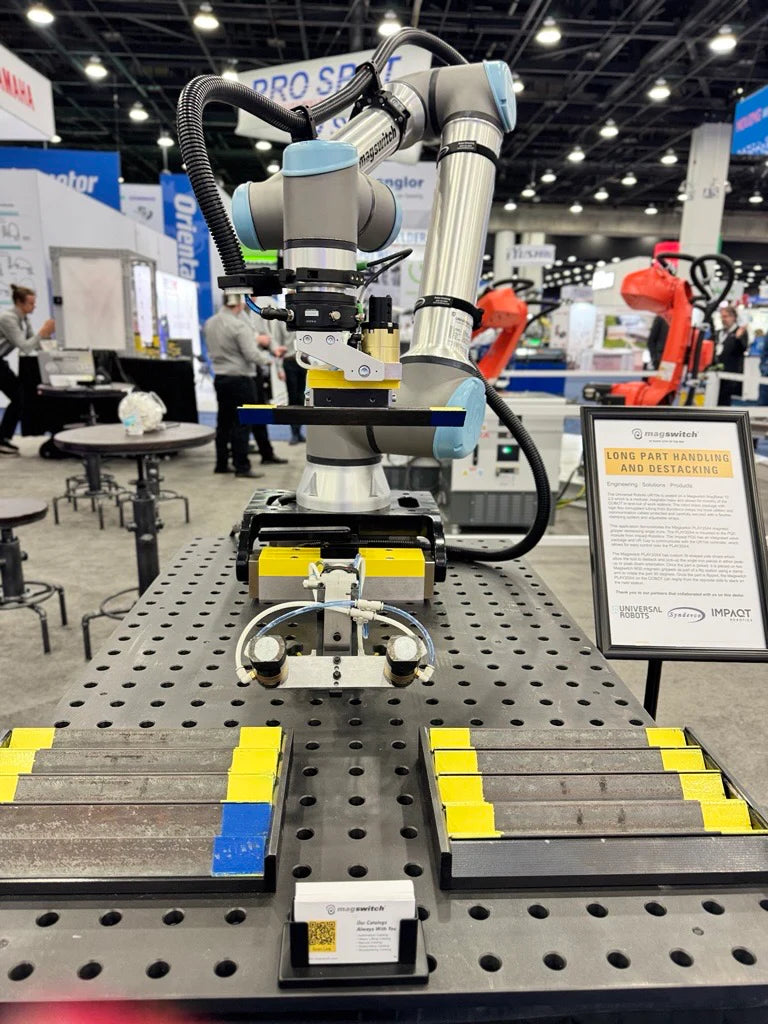

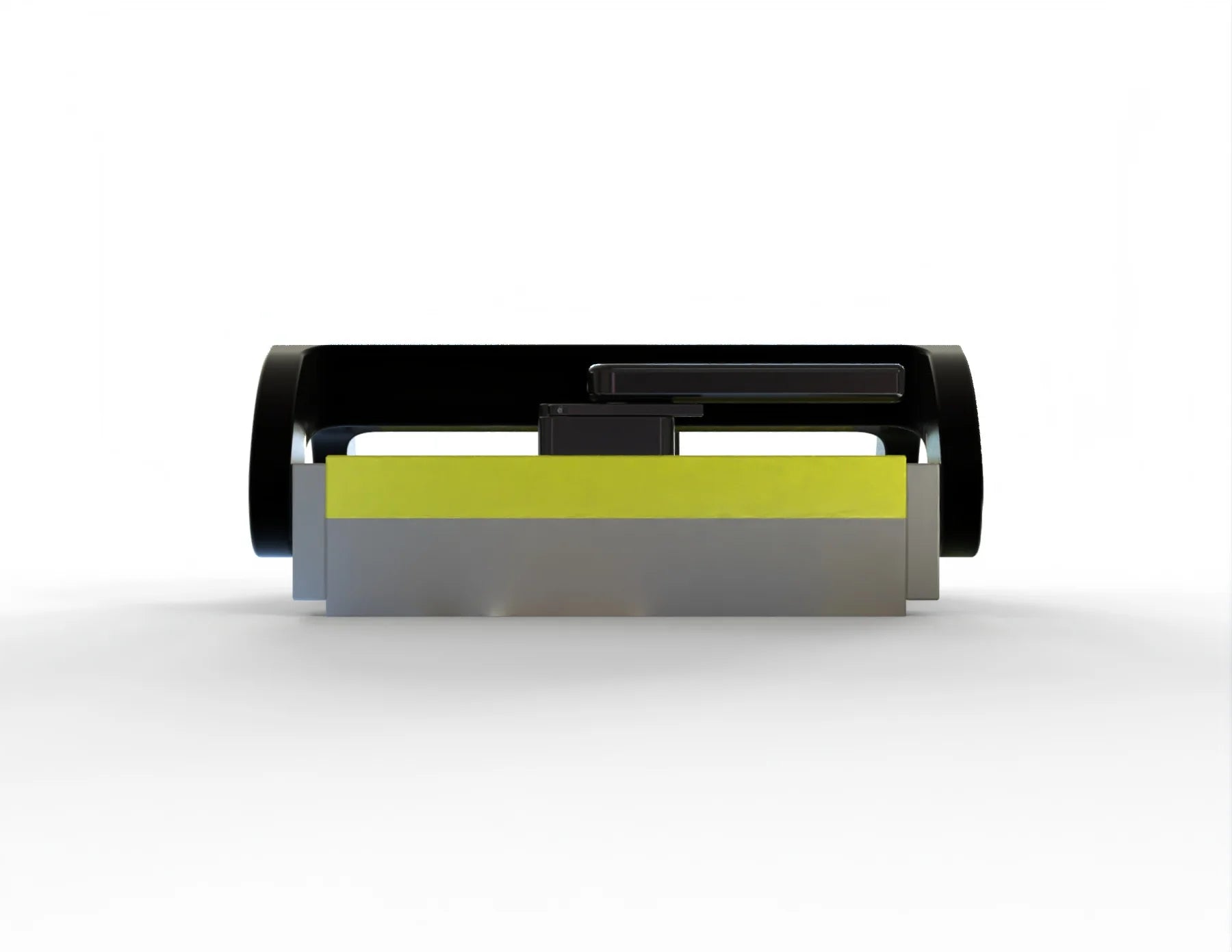

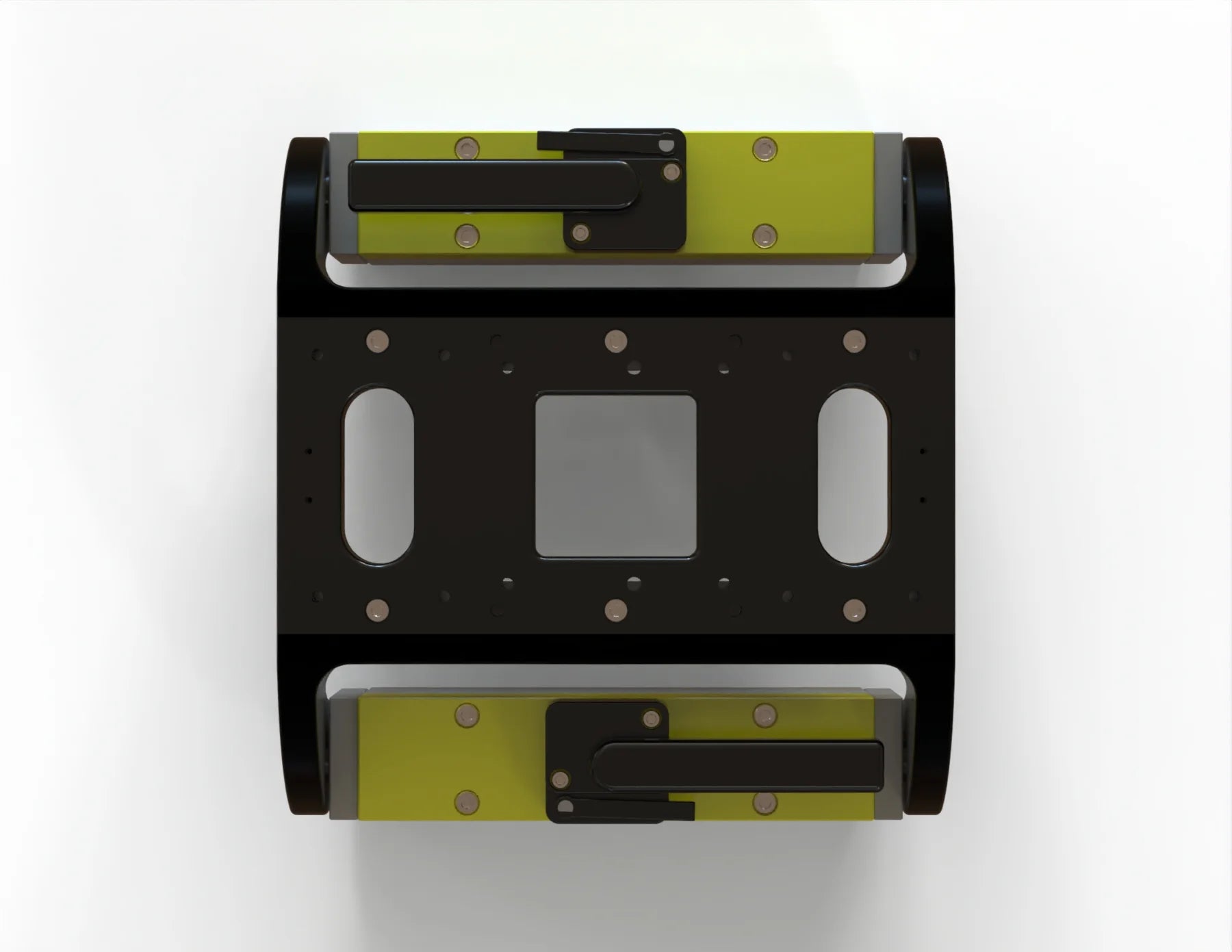

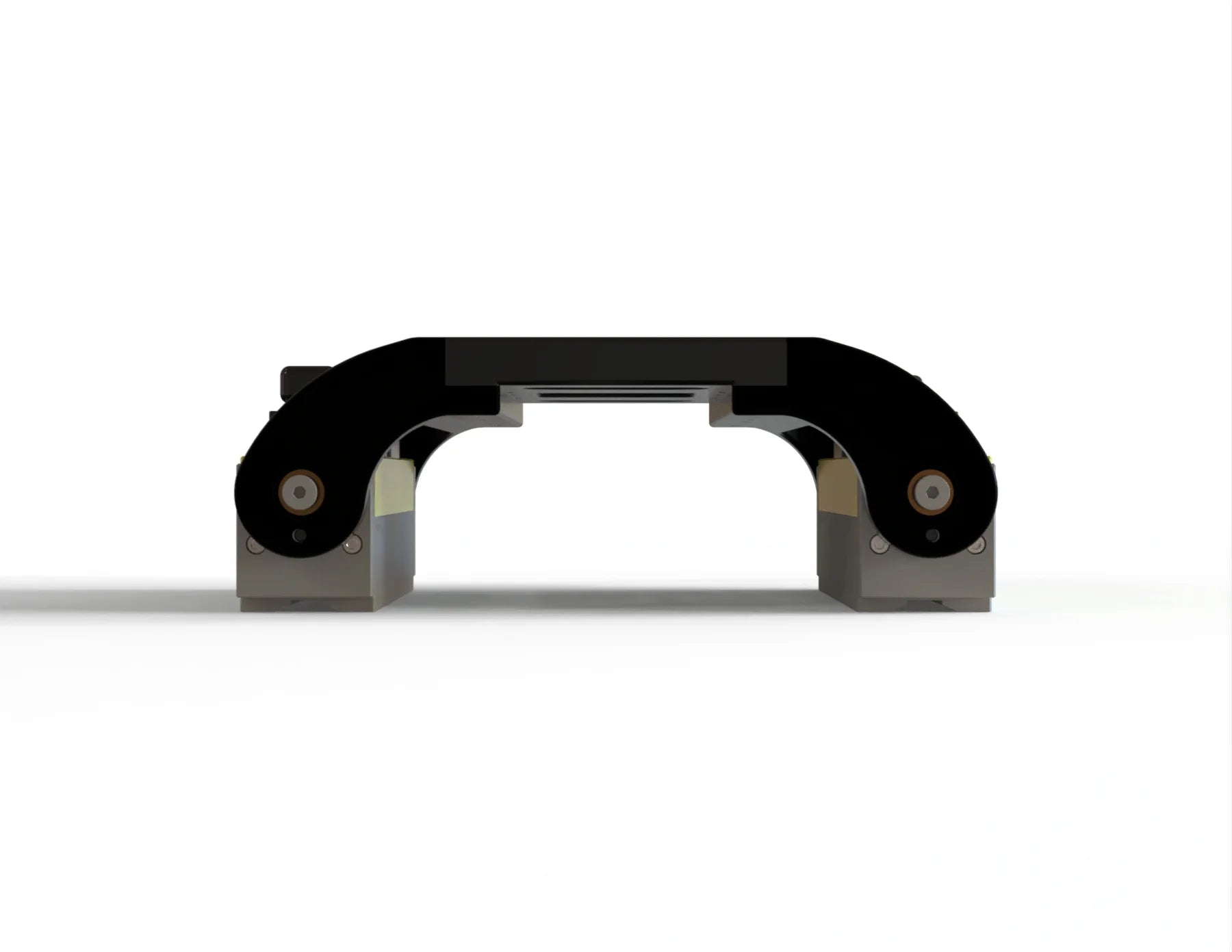

Cobot MagBase 10 2.0 magnetische Montageplatte für Cobot
Artikelnummer: 88001856
Magswitch arrays can be anchored flat or pivoted to allow mounting to cylindrical ferromagnetic surfaces and feature a wide footprint to reduce the risk of peel and pry when the end effector is at its greatest radius. Refer to the dimensional drawing below. The standard mounting plate is ready for mounting FANUC CRX-10, UR10, and UR16 COBOTS. Custom mounting plate and patterns can be incorporated; contact Magswitch for more information about customization.
This replaces MagBase 10 Product # 81001289.
Consult our Applications Team for help with sizing for COBOT applications as we will consider payload, reach, mounting surface and attitude.

Spezifikationen
| Parameter | Wert |
|---|---|
| Nominale maximale Abreißkraft¹²⁴ | 22 072 N |
| Nominale maximale Scherkraft¹²⁴ | 4 846 N |
| Materialstärke für vollständige magnetische Sättigung | 0.5" / 12.7 mm |
| Eigengewicht | 66 lbs / 30 kg |
| Magnetische Polfläche pro Array | 2.8" × 11.7" / 71 × 296 mm |
| Gesamtaufstellfläche | 5.6" × 14.8" × 15.6" / 143 × 376 × 396 mm |
Maximalkraft nach Materialstärke
| Materialstärke mm (in) | Maximalkraft¹²⁴ (N) |
|---|---|
| 1.5 (0.059) | 1585 |
| 1.9 (0.075) | 2109 |
| 2.7 (0.106) | 3503 |
| 3.0 (0.118) | 3648 |
| 3.5 (0.138) | 4058 |
| 4.76 (0.187) | 5591 |
| 6.35 (0.250) | 8626 |
| 9.53 (0.375) | 10241 |
| 12.7 (0.500) | 10712 |
| 19.05 (0.750) | 11036 |
Fußnoten
- Bestimmt unter Laborbedingungen an 2" (5,08 cm) dickem SAE1018-Stahl mit 63 Mikroinch Oberflächenrauheit und optimierten Polschuhen.
- Alle Daten beziehen sich auf Einheiten mit flachen Polschuhen.
- Werte können um ±5 % variieren.
- Die angegebenen Kräfte sind keine sicheren Hubkräfte. Konstrukteure müssen geeignete Sicherheitsfaktoren berücksichtigen.
Für dieses Modell empfiehlt Magswitch einen Sicherheitsfaktor von SWL = 10:1.

Cobot MagBase 10 2.0 magnetische Montageplatte für Cobot
Angebot€3.438,75 each
