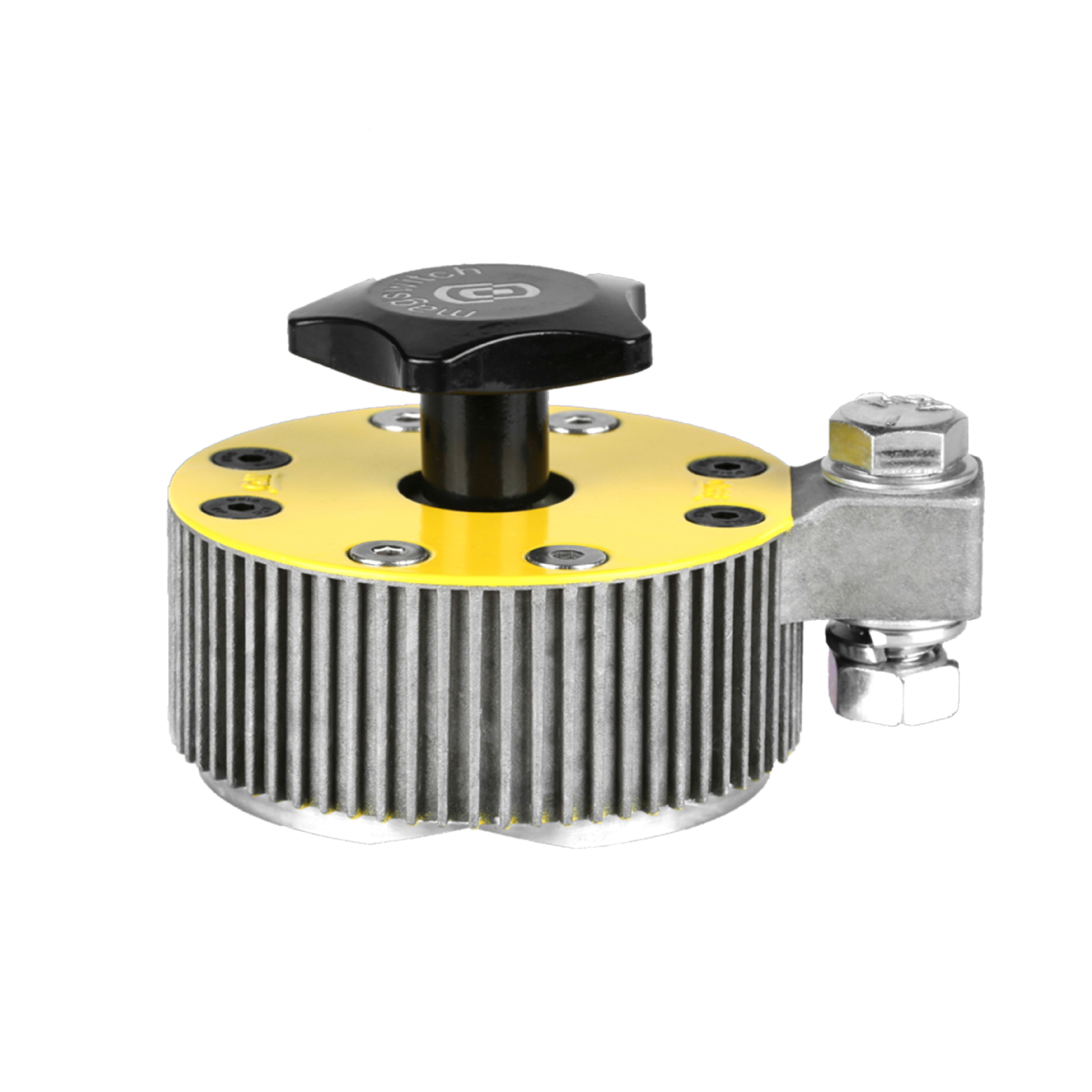

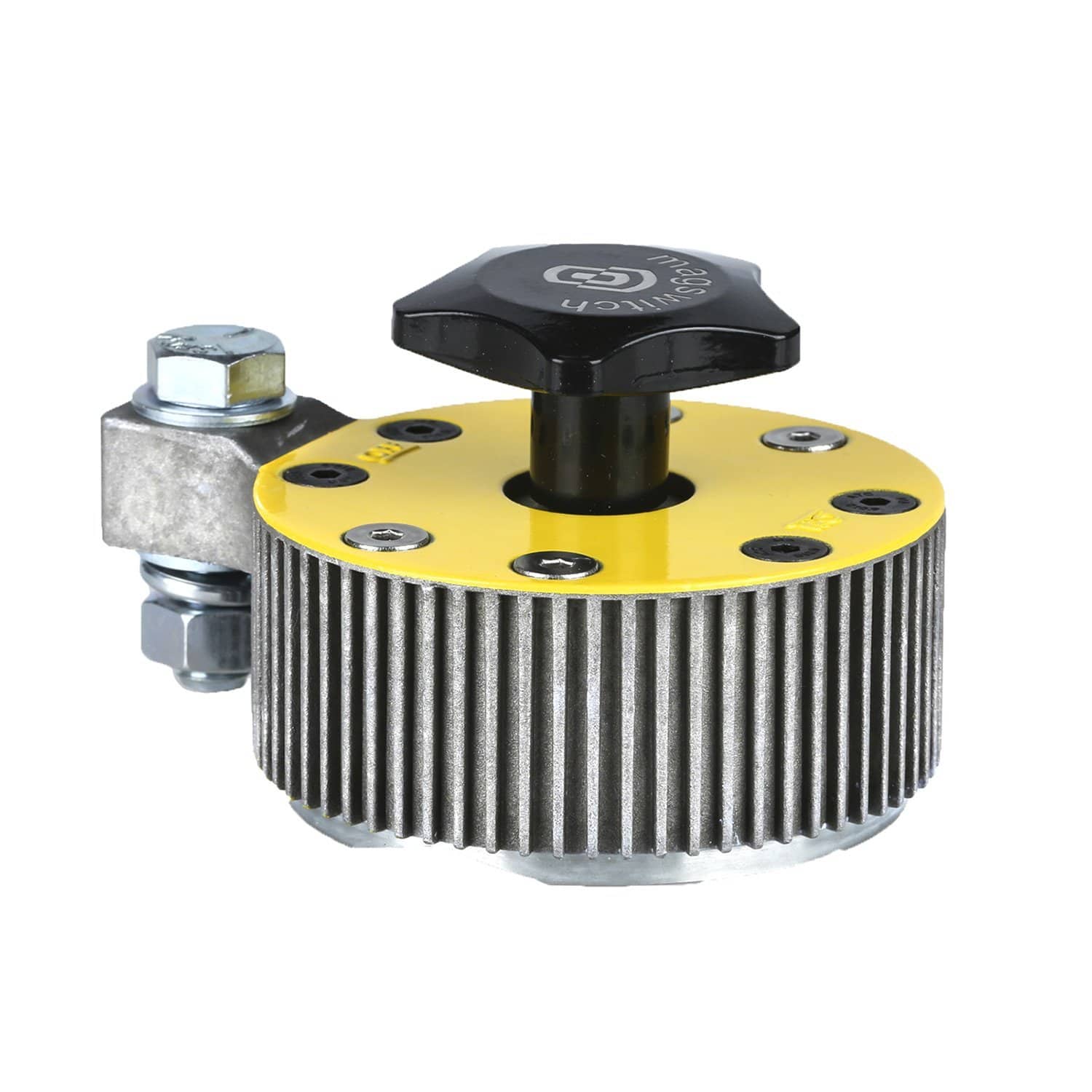

Magswitch 800 Amp Ground Clamp - 8100552

MAGSWITCH 800 AMP MAGNETIC WELDING GROUND BASE CLAMP HOLDER FOR WELDING KIT, TOOLS, SUPPLIES AND ACCESSORIES, MAGNET SWITCH WITH ON/OFF GROUNDING CAPABILITIES, (8100552)

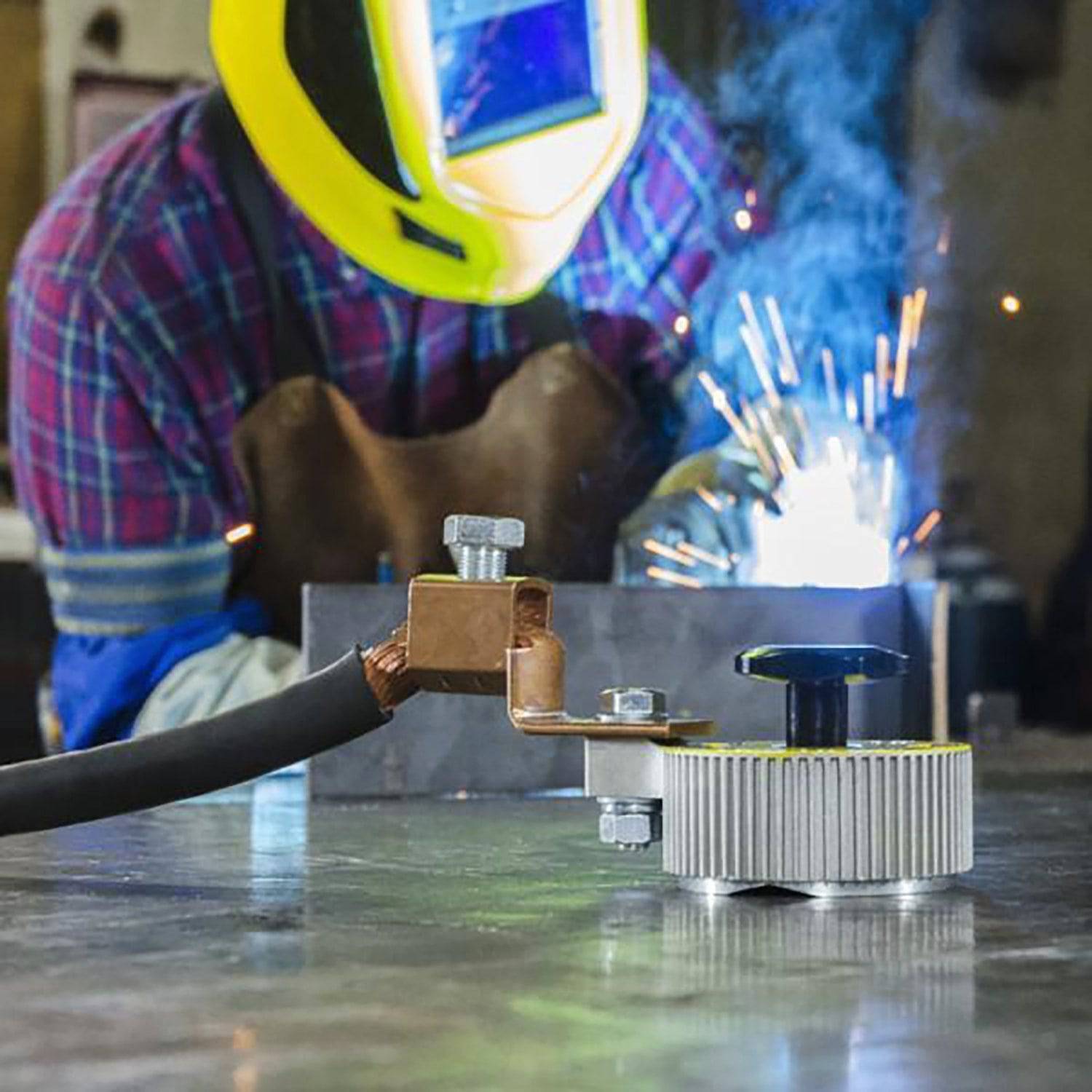

Place the magnetic clamp on a clean work surface, twist the knob, and start welding. Switch on and off 136 kgs of magnetic holding force by rotating the black knob.

FEATURES &amp, BENEFITS

• Magnetic field mechanically turns completely on and off.
• Does not use an electrical power source.
• Turn off to wipe away metal shavings.
• The magnet stays clean.
• Mounts to flat and round surfaces of steel.
• Lightweight and grounds instantly.

SPECIFICATIONS

• Max Breakaway: 300 lbs / 136 kg
• Product Weight: 3.5 lbs / 1.6 kg
• Dimensions: 4.9 x 3.9 x 2.9 in / 124.5 x 99 x 73.6 mm
• Magnetic Pole Footprint: 89 mm diameter

Downloads

800 AMP MAGNETIC WELDING GROUND CLAMP Downloads:

• 800 Amp Ground Clamp Spec Sheet
• 800 Amp Ground Clamp STEP File

Magswitch Downloads:

• Welding &amp, Fabrication Brochure
• Magswitch EU Manual Catalog
